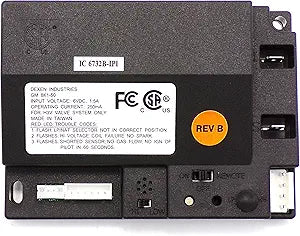

Dexen GM8K-1 IPI Control Module Γ H3V Valve System Γ Compatible with Heatilator, Heat N Glo, Quadra-Fire Fireplaces Γ Replaces 2166-347, 2166-307 Γ 5-Step Flame Modulation

COMPATIBILITY: For H3V valve systems in Heatilator, Heat N Glo, and Quadra-Fire gas fireplaces using GM8K-1 or GM8K1-OC modules Replaces part #2166-347 and 2166-307 | TECHNICAL SPECS: Supports 90-second ignition attempt and 3 re-ignition cycles with automatic safety shutoff for failed ignition Includes 5-step flame modulation and thermostat support | VOLATILE LOCKOUT: If lockout is triggered remove power (batteries or transformer) for 10 seconds then reconnect to reset system Always check for secure wiring before restart | INSTALLATION DETAILS: Installs inside the fireplace with 5.5-meter wall switch wire Powered by 4 AA batteries or 6VDC transformer Front-facing plastic housing for easy access | SUPPORTED MODELS: Compatible with MEZZO, TRUE, ESCAPE, COSMO, REVO, SUPREME, GRAND, QFI, BV4236DBI, CARODG36/42, LUX36/42, SL-3X to SL-9X and more
