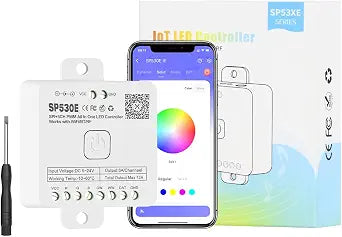

ALITOVE SP530E WiFi Alexa & Google Bluetooth LED Controller DC5V-24V

Smart App & Voice ControlThe SP530E supports remote control via smartphone app over WiFi, as well as voice control through Alexa and Google Home. The BanlanX app offers remote control, color calibration, timers, poweron/off effects, and startup state settingsgiving you flexible management of your LED strips anytime, anywhere. | Power SpecificationsInputVoltage: DC 5V / DC 12V / DC 24V; 5.5mm x 2.1mm DC power jack. Input current: Maximum output current per channel: 6A. Total maximum output current: 12A. The controller's input voltage must match the operating voltage of the LED strip. A 5V power supply for 5V LED strip. Never use a 12V or 24V power supply for 5V LED Strip, otherwise it will damage the strip. | Support PWM LED StripSupports PWM LED strips without IC chips, such as FCOB 5530, 5730, 5050, 2835, 3528, and other models, including 2-pin (V+ V-), 3-pin CCT (V+ CW WW), 4-pin RGB (V+ RGB), 5-pin RGBW (V+ RGBW), and 6-pin RGBCCT (V+ RGB CW WW), etc. Monochrome lights and CCT lights do not have DIY lighting effect functionality. | Supports Addressable IC LED Strips and MatricesSupports SPI TTL addressable IC LED strips & matrices. Compatible with WS2812B matrix (from 88 to 3232, etc.), max 1200 pixels. 3-pin (V+, Data, GND) or 4-pin (V+, Data, Backup, GND) interface. Works with single-color, CCT, RGB, RGBW, RGBCCT strips (ICs: WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812, LB1934). | Simultaneous Control of SPI & PWM LED StripsYou can control a WS2812B IC RGB LED strip + FCOB 3000K singlecolor nonIC strip, or a WS2812B IC RGB LED strip + FCOB CCT nonIC strip.SK9822, WS2801 and other data+clock LED light bars are not supported. Monochrome lights and color temperature lights do not have DIY lighting effects. | The SP530E controller's SPI interface supports up to the following numbers of ICs: 150 for single-color LED strips, 150 for CCT (dualcolor temperature) LED strips, 1200 for RGB LED strips, 900 for RGBW LED strips, 600 for RGBCCT LED strips, 1200 for RGB singlechannel PWM monochrome LED strips, and 1200 for RGB dualchannel PWM CCT (dualcolor temperature) LED strips all values represent the maximum control limits. | Custom Light Screen Spectral EffectsYou can flexibly configure the size and orientation of the rectangular light screen, and set parameters for the music spectrums drop points and the audio bars, such as color, saturation, and direction, to achieve more unique music spectrum effects. | Upgraded Music Effects ModeSupports music effects for LED strips: You can configure multiple music effects on the same strip as needed, with each segment independently selectable for different effects and frequency points, and can be set to correspond to bass, midrange, and treble frequency ranges respectively. | Timer FunctionSupports setting up to 5 timers at a time.The controller has power-off memory capability, which retains settings such as on/off effects, fun switching modes, and default on/off states; however, please note that timer events will be cleared after the controller is completely powered off. | Color CalibrationIf the controller display wrong colors, for example, red button shows green color, please dont worry, it doesn't mean the controller is defective. The issue can be resolved by recalibrating the R/G/B order in the app.
