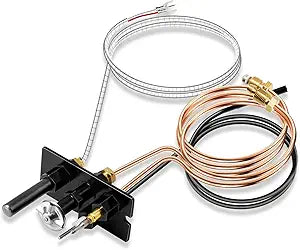

Criditpid 10002264 Natural Gas (NG) Pilot Assembly for HHT, Majestic, Temco, Vermont Castings Fireplace and Stoves, SRV10002264 3 Way SIT Pilot Assembly Parts for Majestic DV360 36BDVR 36BDVT 39BDVR.

Compatibility Replacement 3 Way SIT Pilot Assembly for Majestic, Temco, Vermont Castings, HHT, Dutchwest, Monessen Fireplace and Stoves. Replacement for Part Number10002264, SRV10002264. | Premium Quality The Majestic Fireplace Natural gas pilot assembly is made of high-quality material, strong fixes bracket, premium copper pilot hood and thermocouple, durable material that can be applied for a long time. | Dimension & PackageThis 10002264 pilot assembly replacement parts include 18" pilot tube (pilot hood), 26" thermocouple, 36'' thermopile, 26" ignitor Wire (Electrode) and fixed bracket. The length of all wires are including the joints. NOTE: We provide two types of orifice, the pilot assembly is pre-installed with natural gas orifice, but we include a free propane nozzle and you can easily change to propane gas if you need. | Easy to Install Installation steps for replacing pilot assembly. 1. Cut wires and gas line to old pilot assembly; 2. Remove old pilot assembly; 3. Insert new pilot assembly; 4. Remove ignitor, unplug old wire, plug in new wire; 5. Remove old gas line, install new gas line; 6. Remove old thermocouple connection, install new connection; 7. Remove old thermopile wire, install new wires paying attention to wire colors; 8. Seal holes in firebox floor with high temperature sealant; 9. Lgnite pilot and adjust flame size; 10. Light fireplace to test system. | Please Note We offer a 1-year warranty for Majestic, Temco, Vermont Castings fireplace and stoves pilot assembly. Cut off the gas supply and prepare the necessary tools before replacing the fireplace pilot assembly. During the installation process, due to the fragile copper pipe, please do not bend excessively to cause gas leakage.
