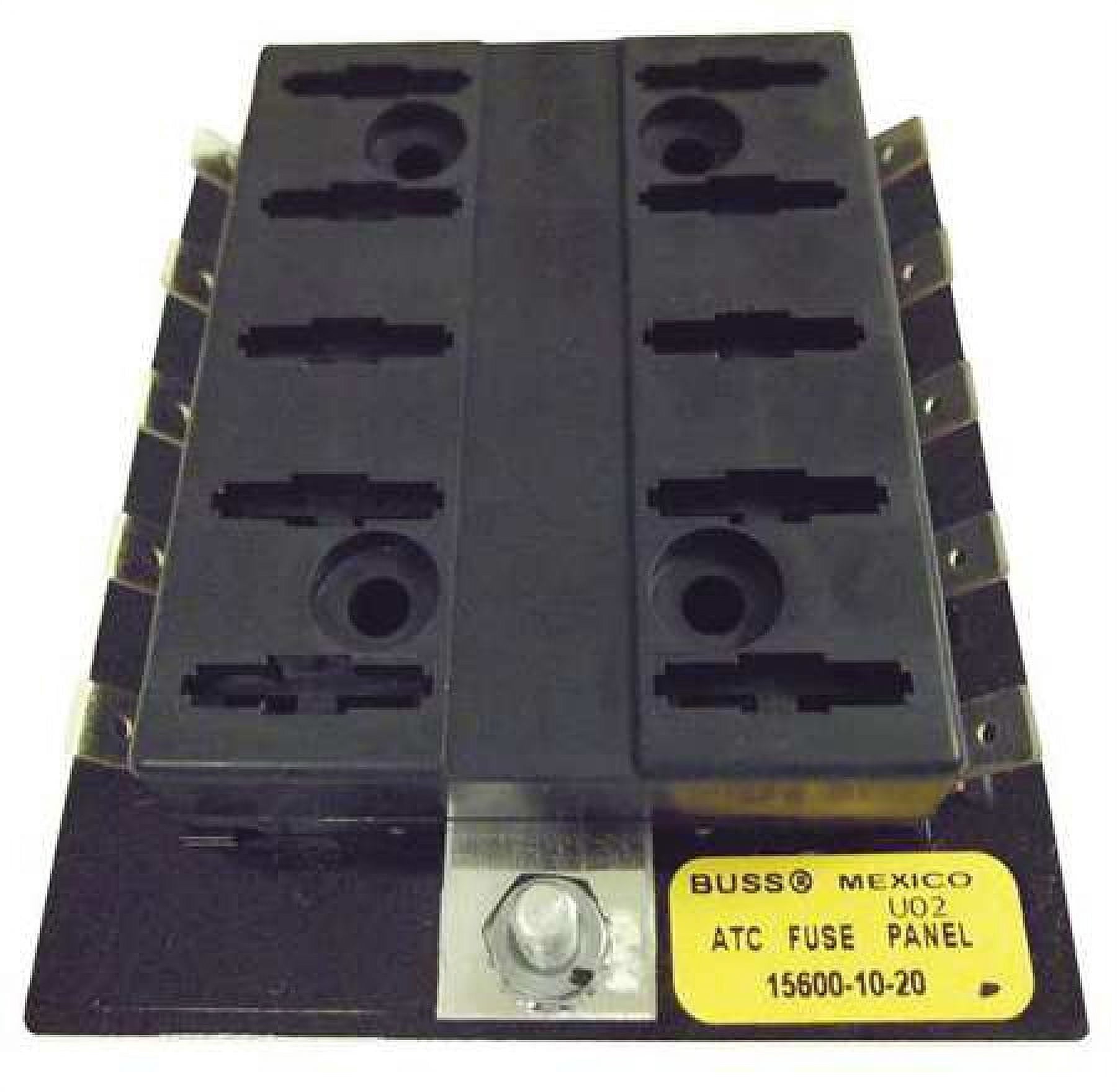

EATON BUSSMANN 15600-10-20 Fuse Block,Automotive,30A,10 Pole

Fuse Block, Fits Fuse Type Automotive, Fuse UL Class Not Class Rated, 0 to 30 A, Number of Poles 10, 32V DC, For Fuse Size 3/4 in L x 3/4 in W x 13/64 in D, Compatible Fuse Series 257, AF, ATC, Series 15600, Nonindicating, Nonrejection, Fuse Block Design Open, Wire Range 16 to 12 AWG (output), 6 to 4 AWG (input), Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Quick Connect, Height 0.8 in, Width 3.37 in, Length 3.75 in, Standards UL Rated 94VO

Features

• Number of Poles: 10
• Amp Range: 0 to 30 A
• Voltage Rating: 32V DC
• Connector Type: Quick Connect
• Mounting Style: Bolt-Down
• Fuse Block Style: Nonrejection
• Fuse Block or Fuse Holder Type: Fuse Block
• Fuse Block or Holder AC Voltage Rating: Not Rated
• Fuse Type: Automotive
• Fuse UL Class: Not Class Rated
• For Fuse Series: ATC
• Amp Range of Fuse Block or Holder: 0 to 30A
• Series: 15600
• Width: 3.37 in
• Standards: UL Rated 94VO
• Length: 3.75 in
• Item: Fuse Block
• Body Material: Thermoplastic
• Fuse Block Design: Open
• Fuse Block or Holder DC Voltage Rating: 32VDC
• Height: 0.8 in
• For Fuse Size: 3/4 in L x 3/4 in W x 13/64 in D
• Fits Fuse Type: Automotive
• Visual Indication: Nonindicating
• Wire Range: 16 to 12 AWG (output), 6 to 4 AWG (input)
• Length (Straight Wireway): 3.75 in
