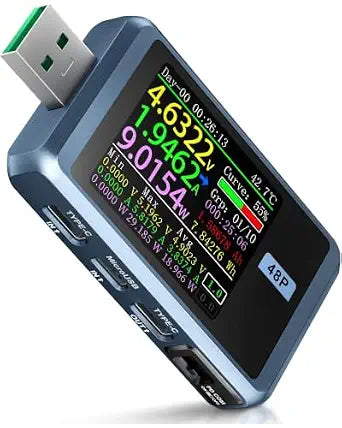

FNIRSI FNB48P USB Tester, PD/QC, USB-C E-Marker Reader, 24V 6.5A, USB-A/C

Color Screen USB TesterFNIRSI FNB48P USB tester has a 1.77-inch full-color ultra-wide viewing angle TFT LCD display and APP software, integrated USB-A, Micro-USB, Type-C interface. Gravity sensor, automatically switch the display direction | Multifunction USB Digital TesterFNB48P uses external 16-bit ADC, PD protocol physical chip. It can monitor the voltage, current, power, resistance, capacity, temperature, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers | Fast Charge Protocol Trigger DetectionFNB48P supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger | Parameter Detection and RecordingSix-digit display of voltage, current and power, the resolution is 0.00001 (V/A/W). 10 sets of switchable capacity, power and time statistics. 1 set of voltage and current curve records | Other detection functionsThe internal resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable | Widely UseIt can be used to measure the power supply or power consumption such as USB interfaces, mobile phone chargers, and U disks.Support low waveform drawing, 2sps->100sps sampling rate. Support high ripple drawing up to 3.2M sps sampling rate
