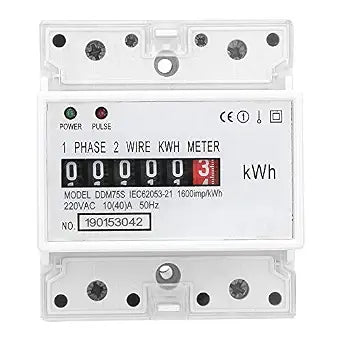

Single Phase 2 Wire Energy Meter 4P Din Rail Electric Kwh Meter 10-40A 220V

35mm standard DIN-rail mounting in accordance with standard DIN EN50022. Six widths (12.5mm modulus) in accordance with DIN43880. Standard configuration 5+1(99999.1KWh) digital display | The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864 | Double color LED indicates the power status (green) and the energy pulse (red). Extend the terminal cover to the use of the security | measurement of single-phase two - wire active energy consumption energy meter. This has nothing to do with the direction of the load current. Comply with IEC 62053-21 | Direct connection operation, two wiring methods. Standard configuration S type wiring, U type wiring can be selected. Small size, light weight, good reliability and easy installation
