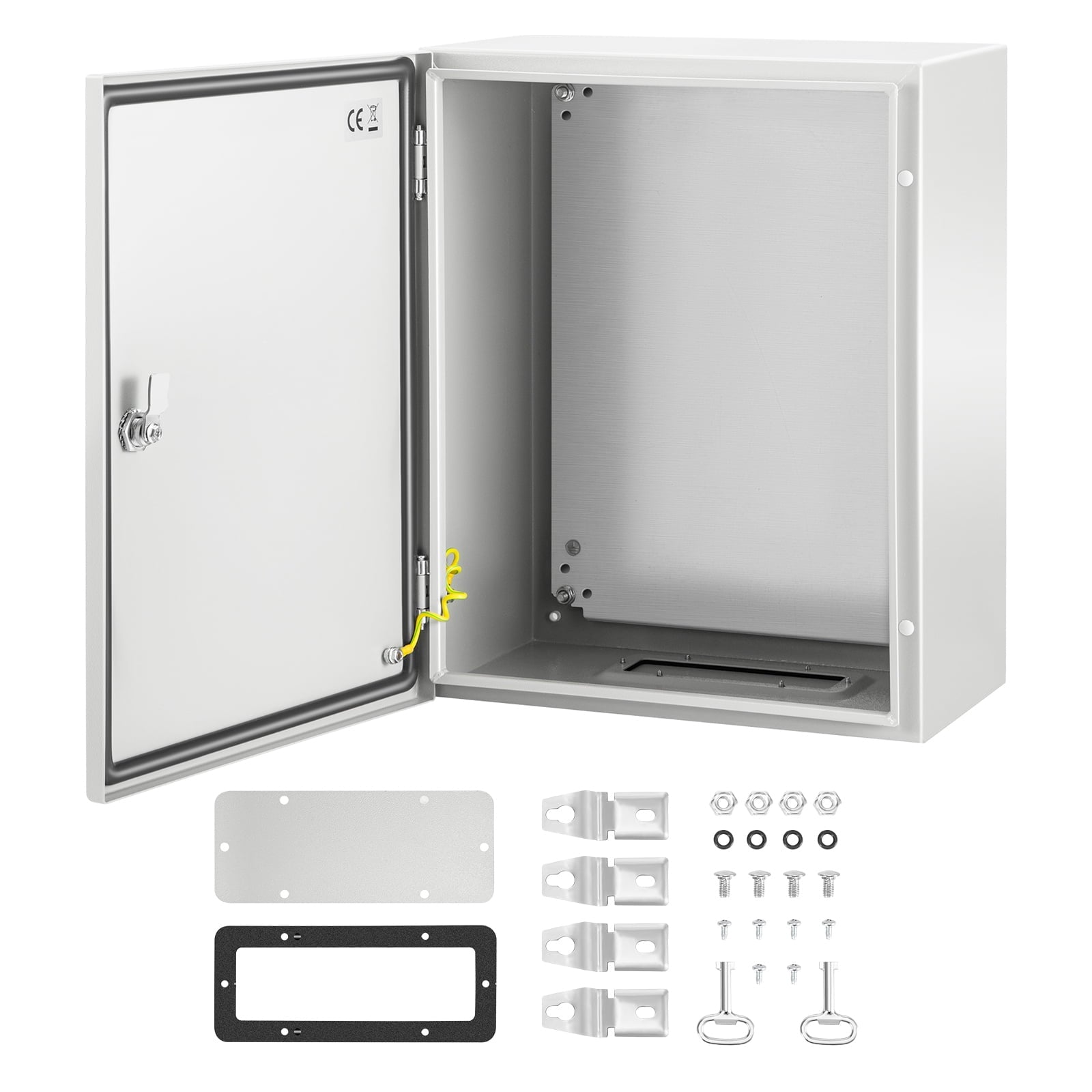

• SKYSHALO NEMA Metal Case, Dimensions 20x16x10 inches, NEMA 4X Metal Electric Enclosure, IP66 Rated for Water & Dust Resistance, Suitable for Both Outdoor & Indoor Use, Includes Mounting Plate
1 1

Brand: KFFKFF

SKYSHALO NEMA Metal Case, Dimensions 20x16x10 inches, NEMA 4X Metal Electric Enclosure, IP66 Rated for Water & Dust Resistance, Suitable for Both Outdoor & Indoor Use, Includes Mounting Plate

SKYSHALO NEMA Metal Case, Dimensions 20x16x10 inches, NEMA 4X Metal Electric Enclosure, IP66 Rated for Water & Dust Resistance, Suitable for Both Outdoor & Indoor Use, Includes Mounting Plate

Low stock: 2 left

9797472436

$89.09
$89.09
Sale Sold out
Shipping calculated at checkout.
✔ Makes daily work easier & more comfortable

Product Description

Secure your electrical setups with the SKYSHALO Electrical Enclosure Box!
Crafted from premium carbon steel, the SKYSHALO Electrical Enclosure Box offers top-notch protection for your plug-ins, power cords, and other equipment. Its precise lock design, high-strength hinges, and sealing strips ensure that your circuit remains safeguarded against the elements. With an IP66 waterproof grade, this enclosure box effectively shields your electrical components from liquids and corrosion, providing peace of mind.
Durable Steel Construction
Crafted from 0.059''/1.5 mm cold-rolled steel, this electrical box offers exceptional toughness, resistance to pressure, and protection against rust. Its shell is coated with epoxy polyester powder, providing excellent mechanical and leveling properties.
Reliable IP66 Protection
With an IP66 protection level, this electrical box ensures reliable defense against dust, moisture, water, rain, snow, and oil. Keep your internal electrical appliances safe and dry in any environment.
Secure Hinge and Lock Mechanism
Featuring a metal inner lock core, this box prevents damage from excessive force or unauthorized opening. The reinforced hinge guarantees durability even with repeated opening and closing.
Easy Installation and Usage
Effortlessly install PCB boards, terminals, or other electrical components with the detachable 2MM galvanized backplate.
User-Friendly Design
The detachable outlet hole at the bottom allows for easy cable entry and exit. The box comes with a pre-installed ground wire and features rounded corners to prevent cable damage.
Versatile Application
Suitable for both indoor and outdoor use, these electrical junction box enclosures effectively protect circuits and prevent corrosion. Ideal for various settings such as factories, construction sites, shopping malls, squares, residential areas, and courtyards.

Specifications

Model: SPT
Color: Gray White(RAL7035)
Material: 0.059'' / 1.5 mm Carbon Steel
Coating: Epoxy Polyester Powder Coating
Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
Connection Type: Hinged
Feature: Lockable, Waterproof
Galvanized Backplate Dimensions: 17.7" x 13.8" / 45 x 35 cm
Outer Dimensions (H x W x D): 20'' x 16'' x 10'' / 50 x 40 x 25 cm
Inner Dimensions (H x W x D): 19.6'' x 15.6'' x 8.5'' / 49.7 x 39.7 x 21.65 cm
Net Weight: 32.63 lbs / 14.8 kg
Certification: CE / ROHS Approved

Package Content

1 x Electrical Box
2 x Keys
1 x Mounting Plate(The mounting plate has been assembled in the box)
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate
